In the realm of biotechnology and genetic engineering, plasmids have emerged as indispensable tools, serving as vectors for the transfer and expression of genes in various organisms. Plasmids are circular, double-stranded DNA independent of the host chromosome. With their unique replication stability and ability to carry exogenous genes, they are ideal for laboratory manipulation and therapeutic applications. Preparation of plasmid DNA is a critical process – including steps ranging from cloning and propagation in a bacterial host to purification and quality control to ensure the integrity and functionality of plasmid DNA for downstream applications.

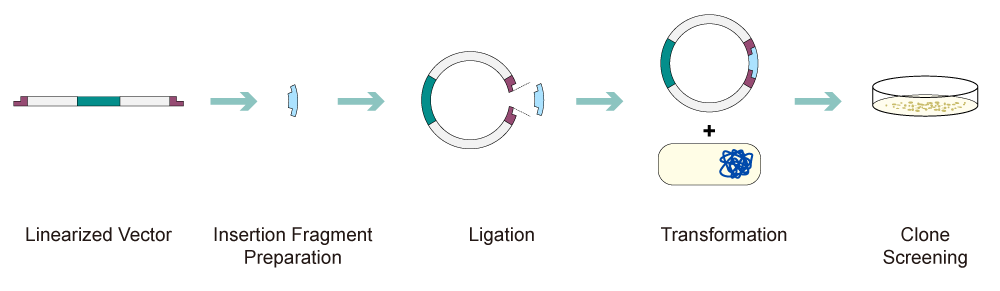

Construction of Plasmid DNA

Plasmid DNA construction is the first step in the preparation process, which includes cloning of the target gene and selection of the plasmid vector. This step needs to be performed in a laboratory setting using molecular biology techniques such as PCR, enzymatic cutting, ligation, etc.

• Acquisition of the Target Gene: The target gene is amplified from genomic DNA or cDNA by PCR or other methods.

• Selection of Plasmid Vectors: Choose the appropriate plasmid vectors according to the experimental needs, such as high-copy plasmids, low-copy plasmids, and expression plasmids

• Gene Cloning: Insert the target gene into the plasmid vector, mainly through enzyme cutting and ligation reaction.

• Transformation: Transform the constructed plasmid vector into appropriate host cells, such as E. coli.

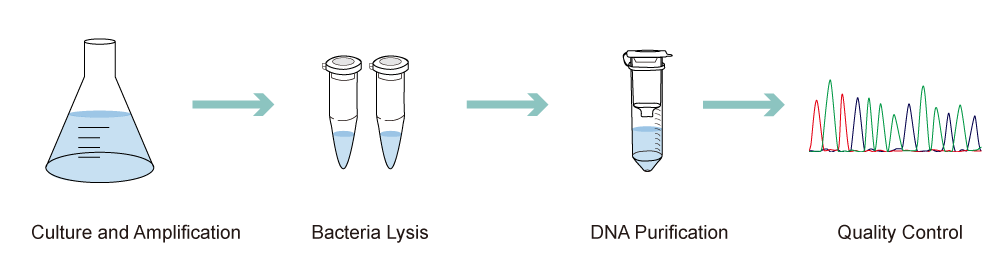

Preparation of Plasmid DNA

Preparation of plasmid DNA is a key step after the construction, including bacterial culture, plasmid amplification, plasmid extraction, purification, and quality control.

• Bacterial Culture: Bacteria containing the target plasmid are inoculated and cultured in appropriate medium, such as LB medium.

• Plasmid Amplification: High-density amplification of the plasmid is achieved by optimizing the fermentation conditions, such as medium composition, temperature, and pH.

• Plasmid Extraction: Use appropriate lysis methods to lyse the bacterial cells and release plasmid DNA. (Commonly used lysis methods include alkaline lysis, boiling method, and SDS lysis method.) After lysis, cell debris and impurities are removed by centrifugation and filtration.

• Plasmid Purification: Plasmid DNA is further purified using techniques such as chromatography, electrophoresis, ultracentrifugation, etc. These techniques remove residual protein, RNA, chromosomal DNA, and other impurities.

• Quality Control: Purified plasmid DNA needs to be tested for quality, including concentration, purity, endotoxin content, and other aspects.

Downstream Applications of Plasmid DNA

The versatility of plasmid DNA extends beyond its role as a mere gene carrier, enabling a wide array of applications across research, biotechnology, and medicine.

Gene Therapy and Vaccines

In the field of gene therapy, plasmid DNA is used as a vector for delivering therapeutic genes or genetic information directly to the patient's target cells. These therapeutic genes can be genes encoding therapeutic proteins, RNAs, or antigens, or molecular components used in gene editing systems such as CRISPR, zinc finger nucleases (ZFN), and transcription activator-like effector nucleases (TALEN). Plasmid DNA can stably carry and express these genes for therapeutic purposes.

In vaccine development, plasmid DNA plays a crucial role. It consists of plasmids that are engineered with one or more exogenous genes. These genes, under the control of a eukaryotic promoter and associated regulatory elements, drive the expression of antigenic proteins in various mammalian cells. DNA vaccines have the following advantages: efficient transmission of antigenic genes, cost-effective production, easy storage, and convenient transportation. In addition, DNA vaccines are able to generate long-lasting humoral and cellular immune responses, and have therapeutic and preventive effects against infectious diseases caused by viruses and parasites.

Gene Editing

As a small, circular DNA molecule, plasmids are often used as a key tool in gene editing. This is especially true in gene editing systems such as CRISPR-Cas9. By constructing plasmids containing sgRNA (single guide RNA) sequences, Cas9 proteins can be guided to precisely target specific gene loci for genomic insertion, deletion or replacement. This technology not only improves the accuracy and efficiency of gene editing, but also brings revolutionary breakthroughs in the fields of gene function research, genetic disease treatment, and crop improvement.

Protein Expression and Production

In protein expression and production, plasmids are often used as vectors for gene expression to introduce exogenous genes into host cells, such asE. coli, yeast, or mammalian cells, for efficient expression of target proteins. Through genetic engineering techniques, target genes can be inserted into plasmids to construct recombinant plasmids. This recombinant plasmid, when introduced into the host cell, is able to synthesize a large number of target proteins by utilizing the biosynthetic system of the host cell. Plasmid vectors not only provide a stable framework for gene expression, but also contain the necessary regulatory elements, such as promoters, terminators, and selection markers, to ensure the correct expression and efficient production of the target gene in the host cell.

Moreover, the replication and stability of plasmid DNA make it important in protein expression and production. The ability of plasmids to replicate autonomously ensures stable delivery to daughter cells during host cell division, thus maintaining continuous expression of target genes. Meanwhile, the stability of plasmids also ensures the continuous production of target proteins during prolonged incubation, which provides strong support for the research and development and industrialized production of protein drugs.

Synthetic Biology and Metabolic Engineering

As a fundamental tool for gene manipulation, plasmid DNA not only provides a flexible platform for gene expression, but also facilitates the redesign and optimization of metabolic pathways. In synthetic biology, plasmid DNA is used to construct and test artificially designed genetic circuits, synthetic modules, and biological systems to create cell factories with new functions or optimized performance.

In metabolic engineering, plasmid DNA is used as a gene delivery vehicle to introduce exogenous genes into host cells to modify and optimize metabolic pathways. By precisely regulating gene expression, metabolic engineers are able to redesign intracellular biochemical reaction networks to increase the yield and efficiency of target products.

Agricultural Molecular Breeding

In the field of agricultural biotechnology, plasmids are widely used to improve crop characteristics such as insect resistance, disease resistance, and drought tolerance. Through genetic engineering technology, scientists can insert exogenous genes into plasmids and then introduce these plasmids into the target crop cells to give the crops new genetic characteristics. This technology not only improves the yield and quality of crops, but also helps to address the impact of climate change and environmental stress on agricultural production.

Conclusion

The downstream applications of plasmid DNA preparation underscore its critical role in advancing biotechnology and medicine. As research progresses and technology evolves, the potential applications of plasmid DNA are bound to expand, further solidifying its status as a cornerstone of modern biotechnology.

Synbio Technologies offers clients a comprehensive, all-inclusive package for vector design and construction. Our team of experts deliver countless plasmid DNA preparation services tailored to meet your exact research requirements. We guarantee that our synthesized plasmids are of superior quality, devoid of any animal-derived components, and maintain a low endotoxin level. Regardless of whether you require plasmids for transfection studies, antibody production, vaccine development, or gene therapy applications, Synbio Technologies is your reliable partner.

References

[1] Ferreira GN, Monteiro GA, Prazeres DM, Cabral JM. Downstream processing of plasmid DNA for gene therapy and DNA vaccine applications. Trends Biotechnol. 2000 Sep;18(9):380-8.

[2] Murakami M, Ohba T, Murakami AM, Han C, Kuwasako K, Itagaki S. A simple and dual expression plasmid system in prokaryotic (E. coli) and mammalian cells. PLoS One. 2019 May 2;14(5):e0216169.

[3] Schmidt-Dannert C, Umeno D, Arnold FH. Molecular breeding of carotenoid biosynthetic pathways. Nat Biotechnol. 2000 Jul;18(7):750-3.
